Advantages of the PREFA rhomboid façade tile 29 × 29
Aluminium construction material
Weather-resistant and non-corrosive façade system with a 40-year material guarantee
Rear-ventilated façade
No condensation, no heat build-up
Fire protection
Reaction to fire class “A1” – non-combustible
Numerous standard colours
P.10 colours with 40-year colour guarantee
Colour range of PREFA rhomboid façade tile 29 × 29

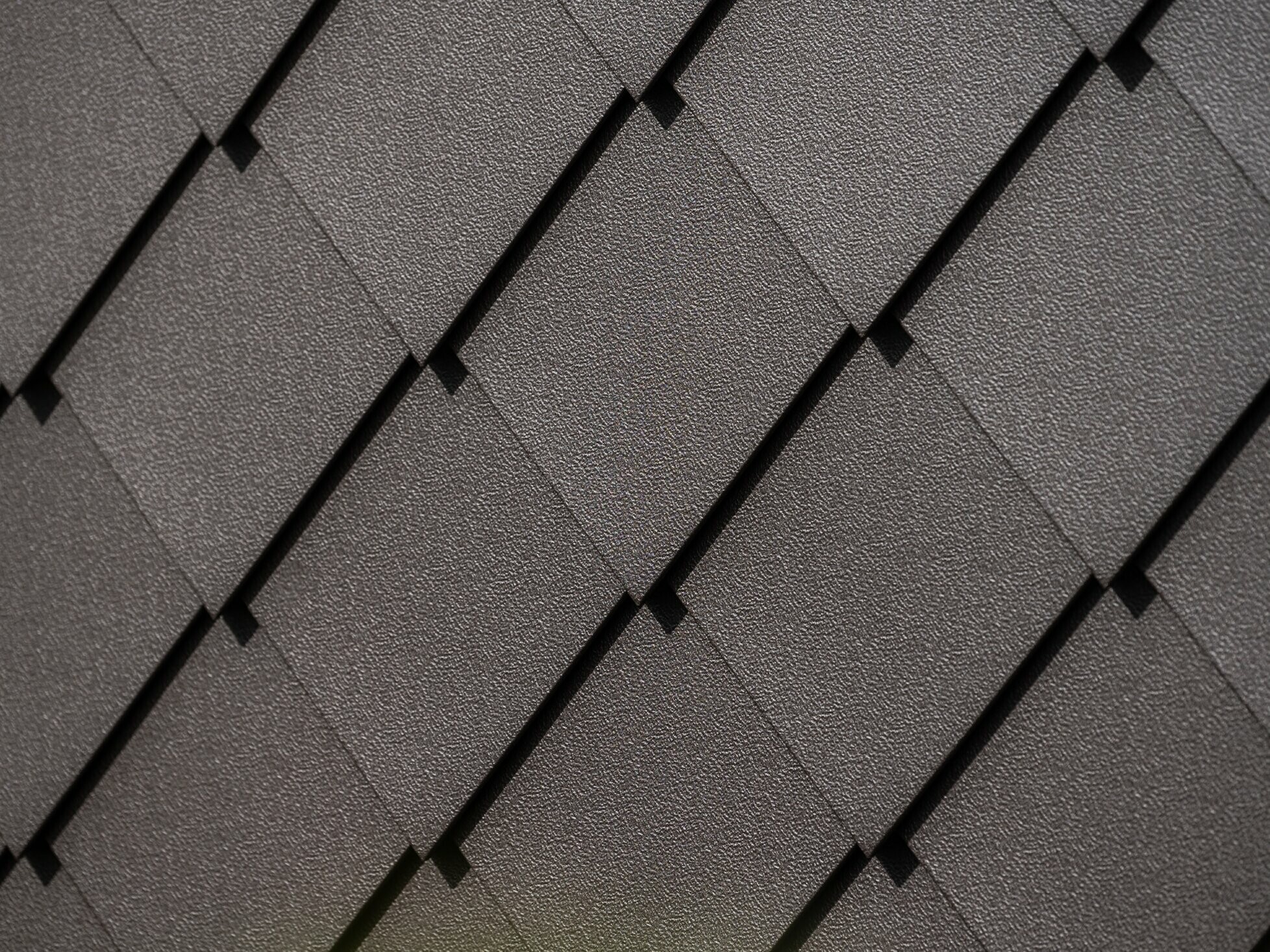

The PREFA rhomboid façade tile 29 × 29 can be ordered with a stucco finish (structural embossing) as well as with or without a ridge (embossment in the surface). A smooth finish is also possible on request.
Color overview (13)
| Color | Code | similar to RAL colour |
|
01 P.10 brown | 7013 |
|
02 P.10 anthracite | 7016 |
|
03 P.10 black | 9005 |
|
04 P.10 brick red | 8004 |
|
05 P.10 oxide red | 3009 |
|
06 P.10 moss green | 6005 |
|
07 P.10 light grey | 7005 |
|
10 P.10 prefa white | 9002 |
|
11 P.10 nut brown | 8019 |
|
12 metallic silver | 9006 |
|
19 P.10 dark grey | 7043 |
|
28 P.10 prefa bronze | 7048 |
|
43 P.10 stone grey | 7031 |
Note
- The RAL numbers indicated are approximations only [~] and may, in some cases, differ greatly from the PREFA original colour. They may not be a true reflection of the subjective perception of colour.
- Particularly in the case of the P.10 paint quality, it is difficult to precisely define the number due to the nature of the surface structure. In addition, the colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, grey oak, natural oak and patina grey are based on natural colours made up of several different shades.
- We recommend obtaining original samples so that you can gain an idea of the exact colours of complementary components.
Be inspired by case studies of already completed projects.
Design your rhomboid tile façade according to your individual desires and ideas.

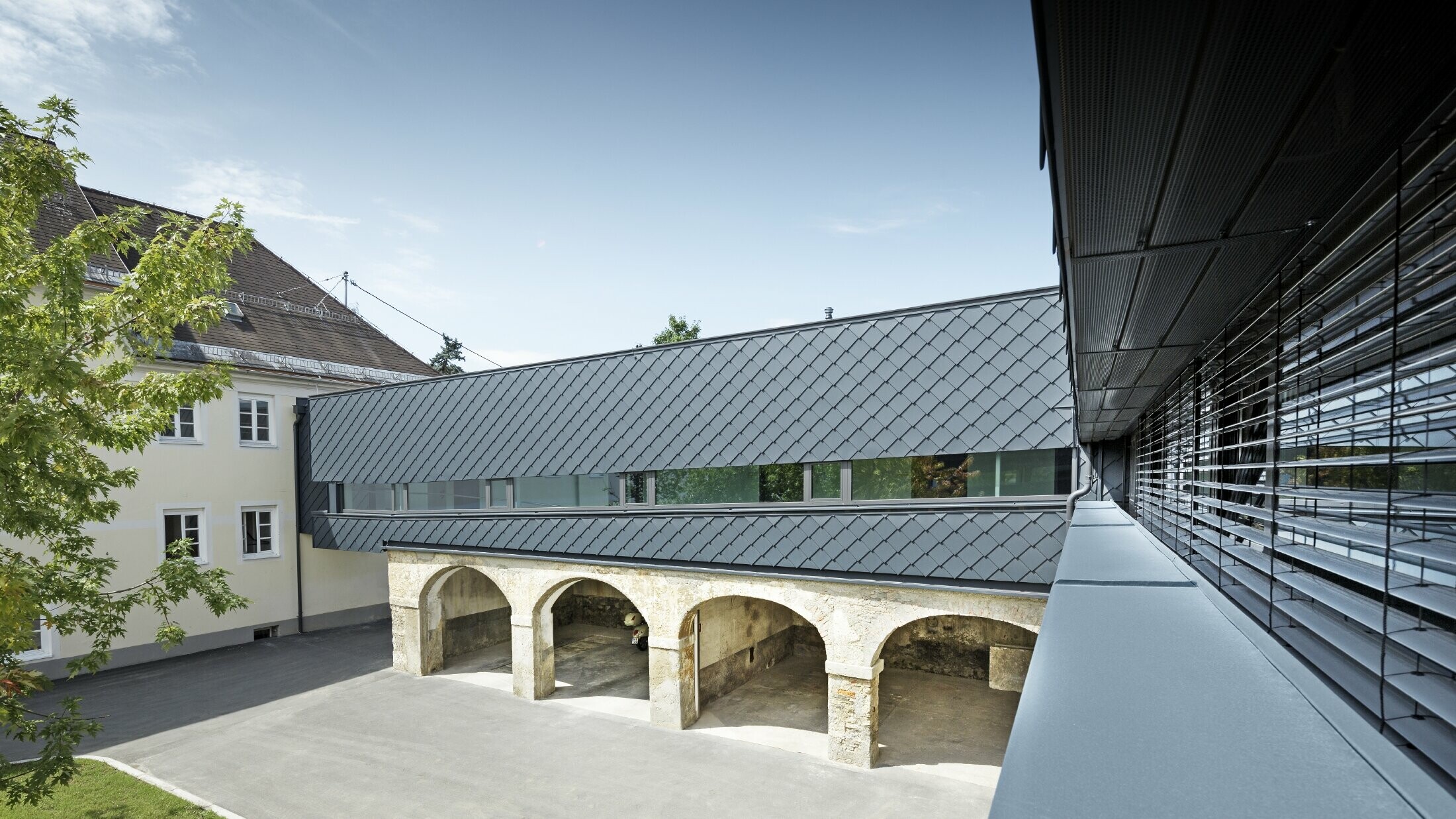

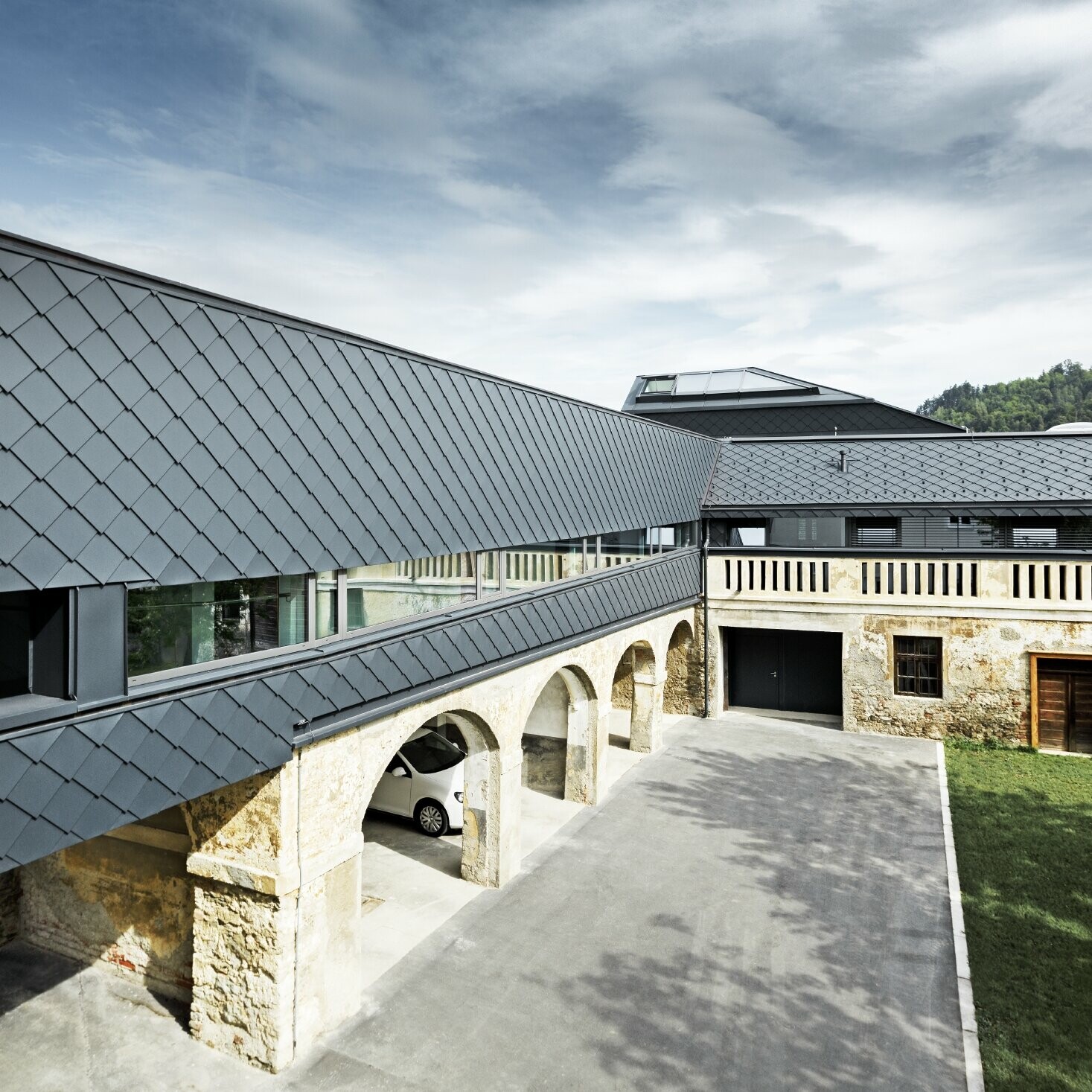

Völkermarkt District Administration with PREFA rhomboid façade tile 29 × 29 in P.10 anthracite

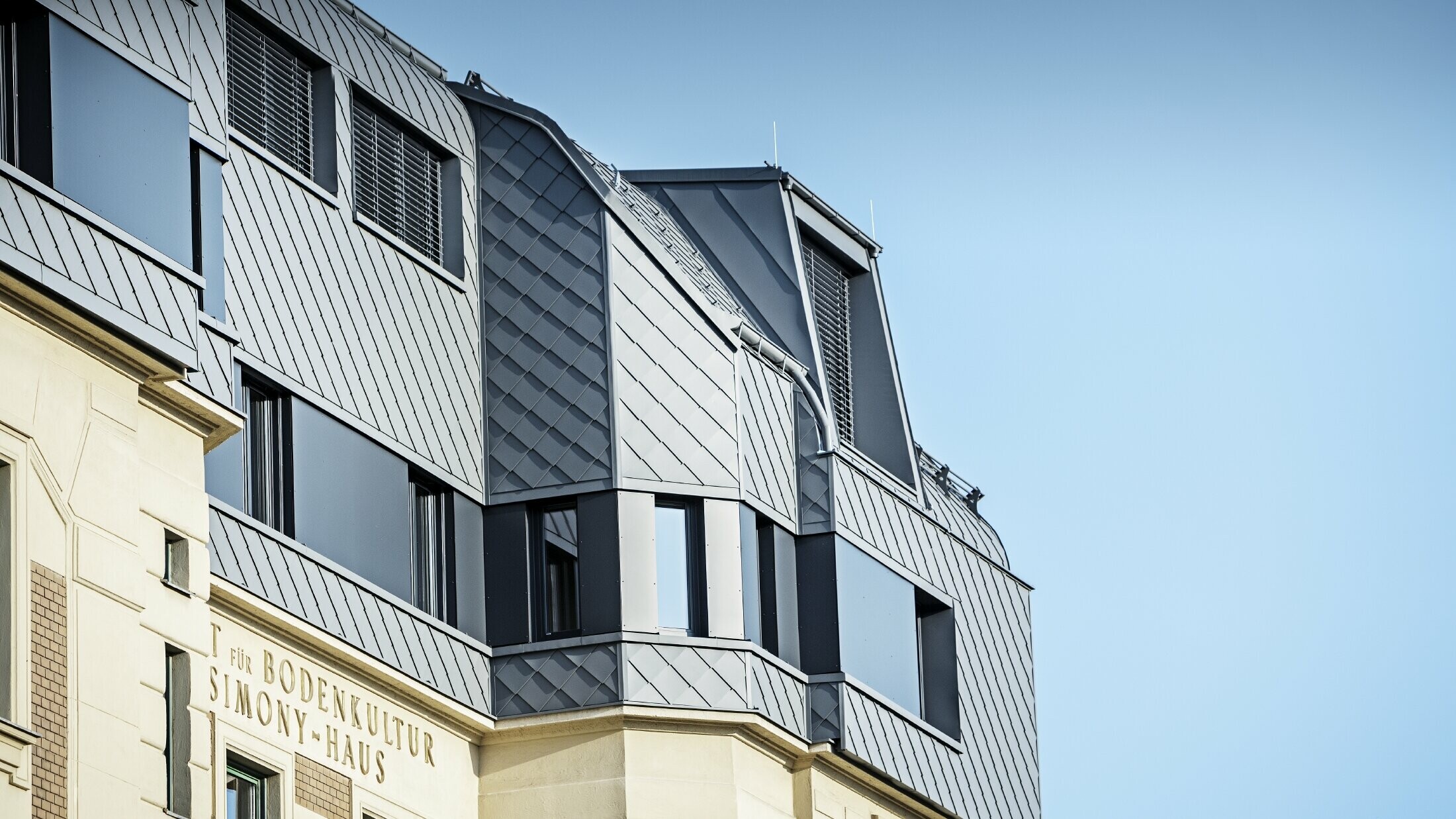

BOKU Vienna with rhomboid façade tile 29 × 29 and roof tiles in P.10 light grey

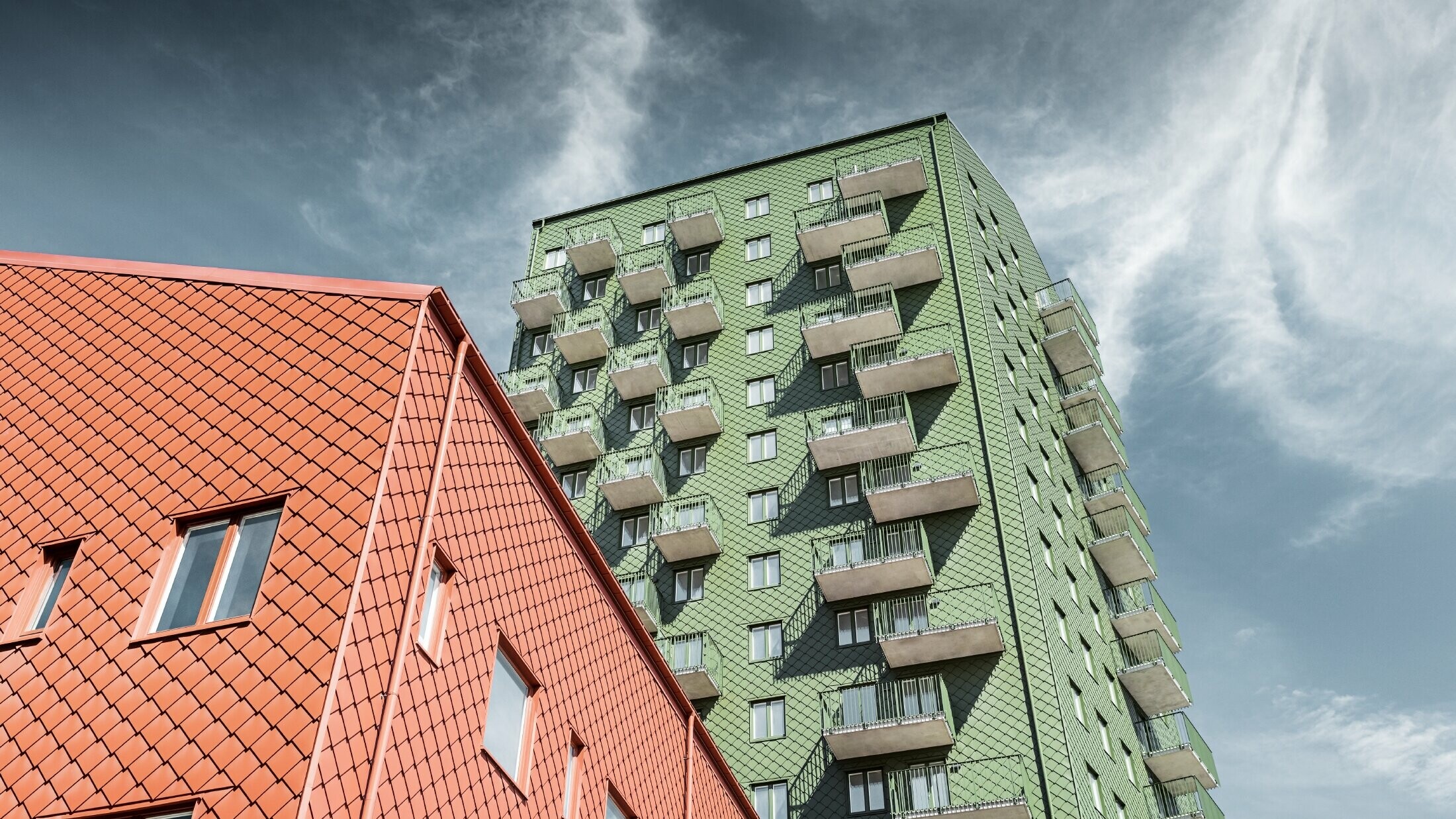

High-rise buildings with PREFA rhomboid façade tiles in olive green and brick red

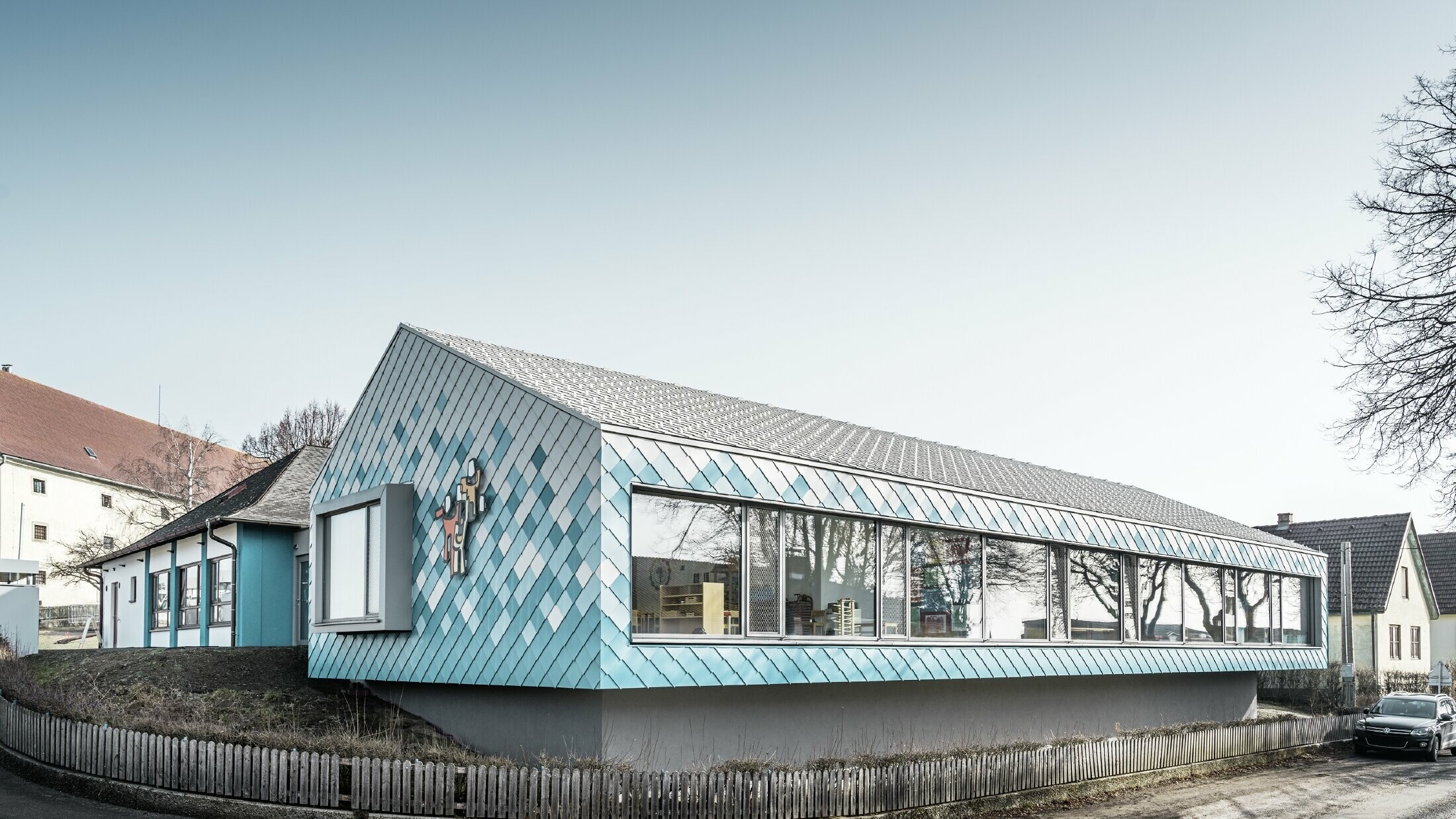

Kindergarten with rhomboid façade tile 29 × 29 in P.10 pure white, light blue and turquoise

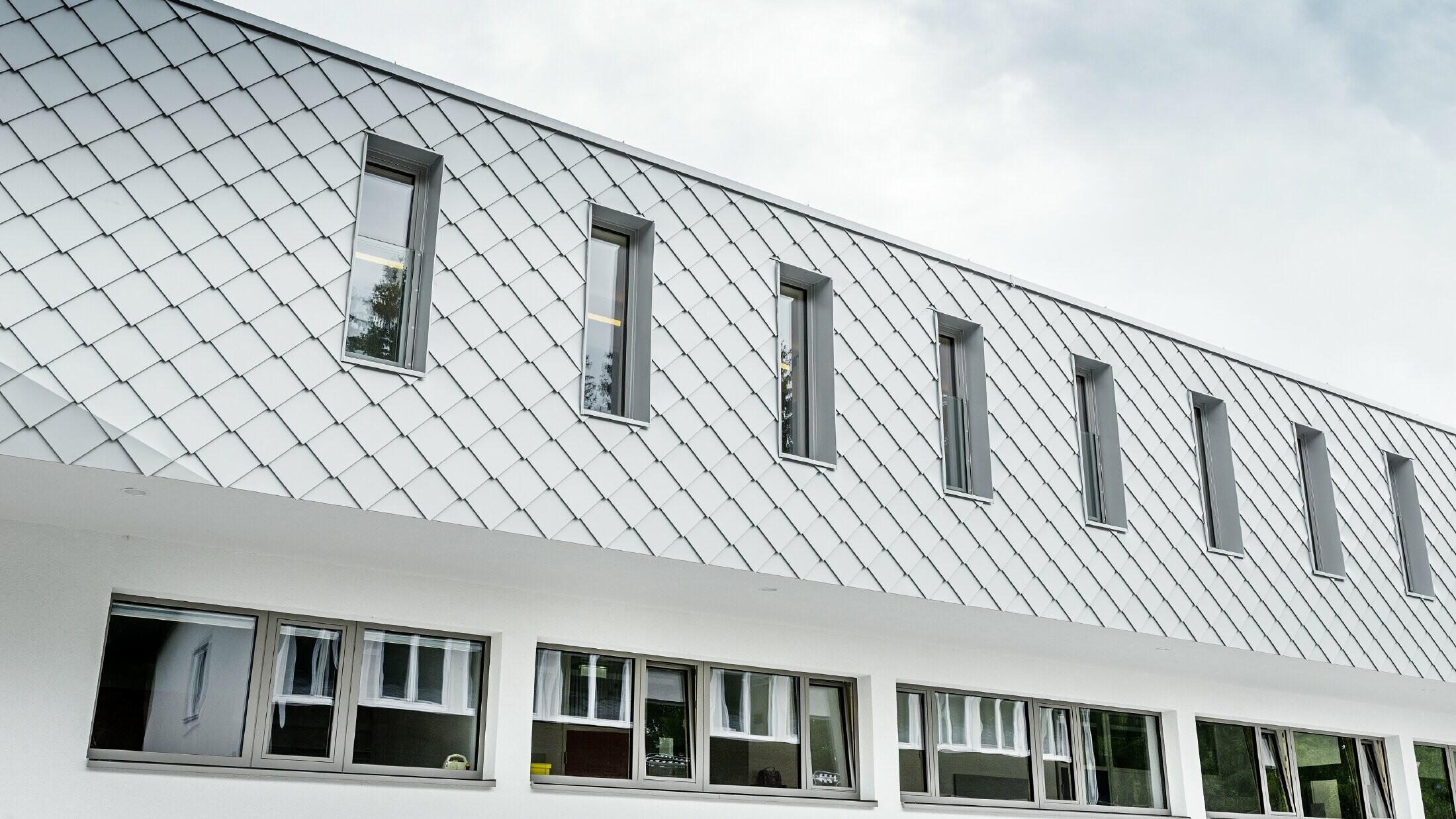

Kindergarten in Kaprun with PREFA rhomboid façade tile 29 × 29 in PREFA white

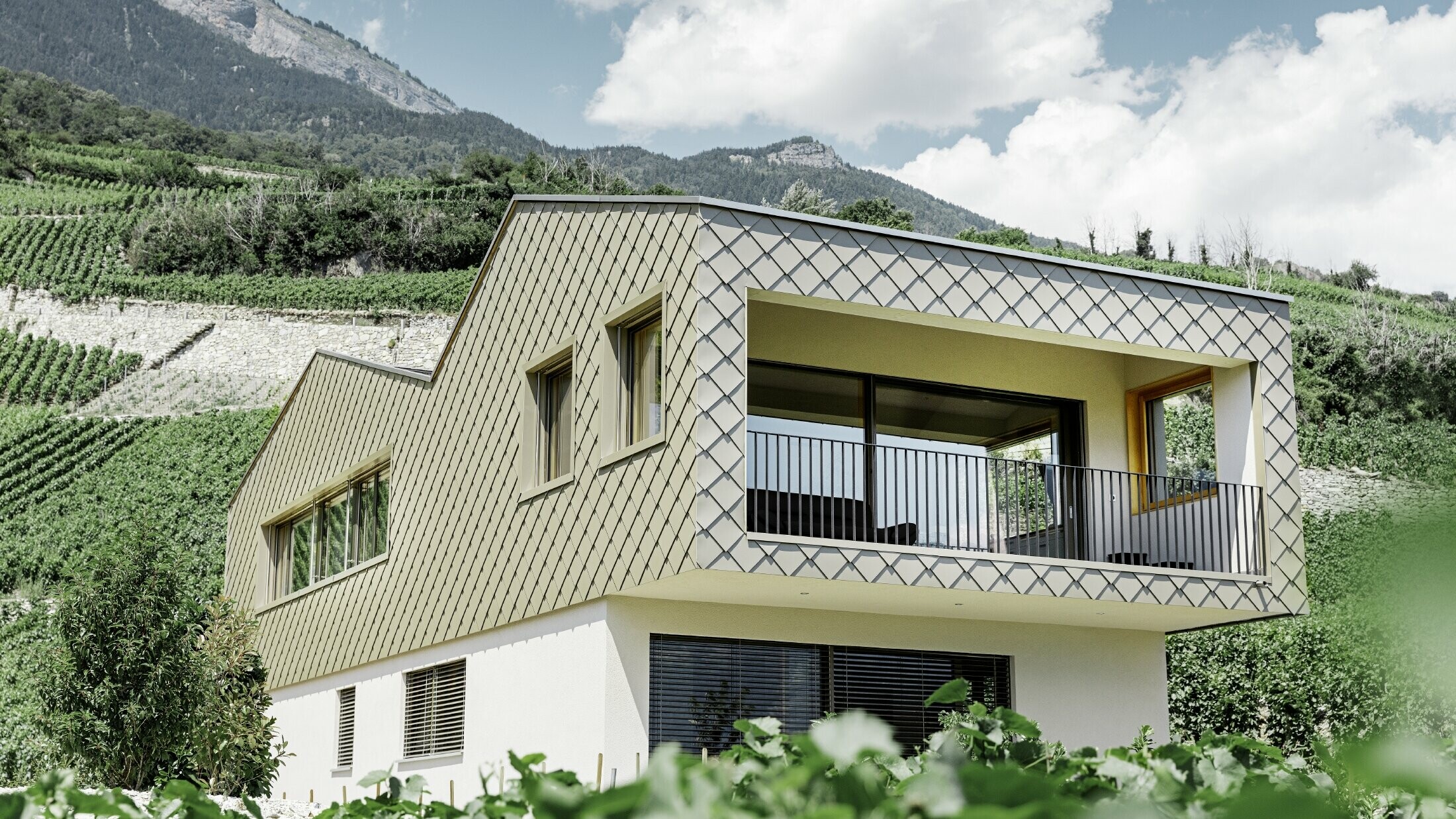

Detached house in Vétroz with PREFA rhomboid façade tiles 29 × 29 in a special colour
You may also like the following option. : PREFA rhomboid façade tile 44 × 44 or PREFA rhomboid façade tile 20 × 20
In addition to the medium-sized rhomboid façade tile 29 × 29, which is indirectly fastened with clips, we also have two other aluminium rhomboid façade tiles in our product range: the larger PREFA rhomboid façade tile 44 × 44 and the smaller PREFA rhomboid façade tile 20 × 20. Contrary to the rhomboid 29 x 29, both are fixed directly.
Technical information
Material |
coil-coated aluminium, 0.7 mm thick |
|---|---|
Dimensions |
437×437 mm (cover), i.e. approx. 5 pc./m² |
Weight |
approx. 2.6 kg/m² |
Supporting substrate* |
installation on fully supported substrate; * National regulations and guidelines must be observed. |
Standard fastening |
direct fastening, 4 PREFA ring nails per rhomboid façade tile 44 × 44 (i.e. 20 PREFA ring nails per m²) |
Planning & Use
Metalworkers and architects can download Tender specifications for PREFA rhomboid façade tiles here.
Accessories
The product is rounded off by matching PREFA accessories such as start and end panels as well as the starter strip for the façade. Usually all flashings and trimmings are made from available complementary coil material in matching colours, by the installer himself.
For a complete, detailed list of PREFA accessory products, see our price list (for installers only).

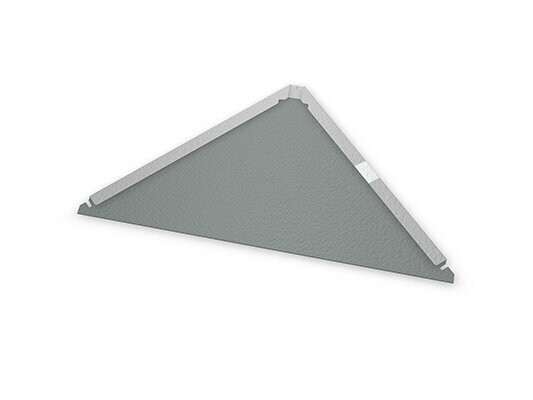

Leading plate for rhomboid façade tile 29 × 29
-

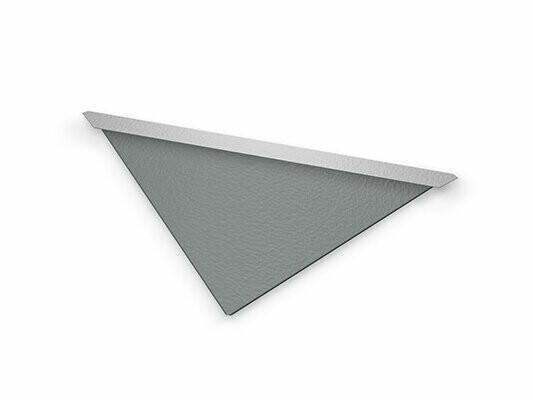

End plate for rhomboid façade tile 29 × 29
-
Starter strip façade
for façade shingles, rhomboid façade tiles and FX.12; 1800 × 158 × 1,00 mm, pre-drilled

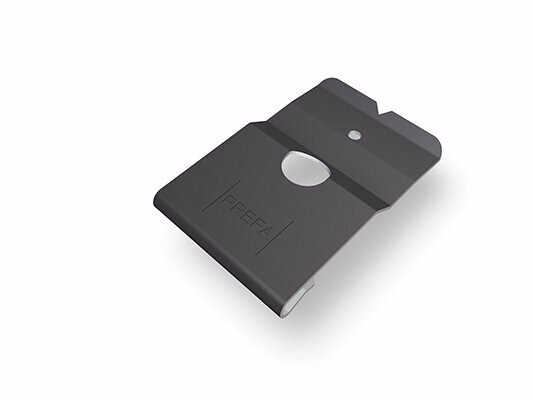

Rhomboid façade tile clip 29 × 29
-
Ring nail
2.8/25 | 2.8/30 | 2.8/40
Fastener (aluminium screw)
Special screw for aluminium substructures, with hardened drill point (red tip for illustration only)
Fastener (steel screw)
Special screw for steel substructures, with hardened drill point (red tip for illustration only)
